Off-Road E-Scooter
1000W–2000W dual-drive option · 48V/60V · front & rear suspension · off-road tires
Off-Road Scooter Platform Specs
Engineered for gravel, dirt, grass and light trail terrain, this platform pairs a reinforced 21 cm wide deck with dual suspension delivering 135 mm of travel. Available in single-motor or all-wheel-drive dual-motor configuration for maximum grip on loose surfaces.
| Motor | 1000W single / 1000W+1000W dual motor (AWD), 48V/60V brushless |
|---|---|
| Battery | 48V 18Ah / 60V 20Ah lithium, removable or integrated |
| Range | 45–65 km (ECO mode, varied terrain) |
| Top Speed | 45–55 km/h (off-road mode) |
| Charging Time | 6–8 hours (standard), 4–5 hours with dual charger |
| Brakes | Zoom/Nutt hydraulic disc 160 mm, front & rear |
| Weight | 28–35 kg |
| Load Capacity | 120–150 kg |
| Tires | 11″ off-road pneumatic tires, deep tread pattern |
| Suspension | Front C-type spring + rear hydraulic coil-over shock, 135 mm travel |
| Deck | Reinforced aluminum alloy, 21 cm wide |
| Display | TFT color LCD with speed, range, mode, battery % |
| Lights | Dual front LED bar (5W total), rear brake light + turn indicators |
Built Rugged, Configured for Your Market
Off-road scooters operate in the harshest conditions — mud, vibration, steep grades and temperature swings. Our OEM options let you dial in the drivetrain, suspension and protection level to match the terrain your customers actually ride, from forest service roads to desert hardpack.
Certified for Rough Terrain, Ready for Retail
Higher-power scooters face additional scrutiny at customs in many jurisdictions. Our off-road platform ships with a complete compliance file covering electrical safety, battery transport and electromagnetic compatibility — pre-cleared for EU and select Asian markets.
Markets That Demand Off-Road Capability
Dual-suspension, high-torque scooters serve a distinct set of commercial and recreational buyers. These three verticals consistently drive the largest order volumes for our off-road platform.
Off-Road Scooter in Detail
The dual-motor drivetrain, full suspension travel, and trail riding stance captured up close. Images show the Dual 1000W AWD variant in matte black.

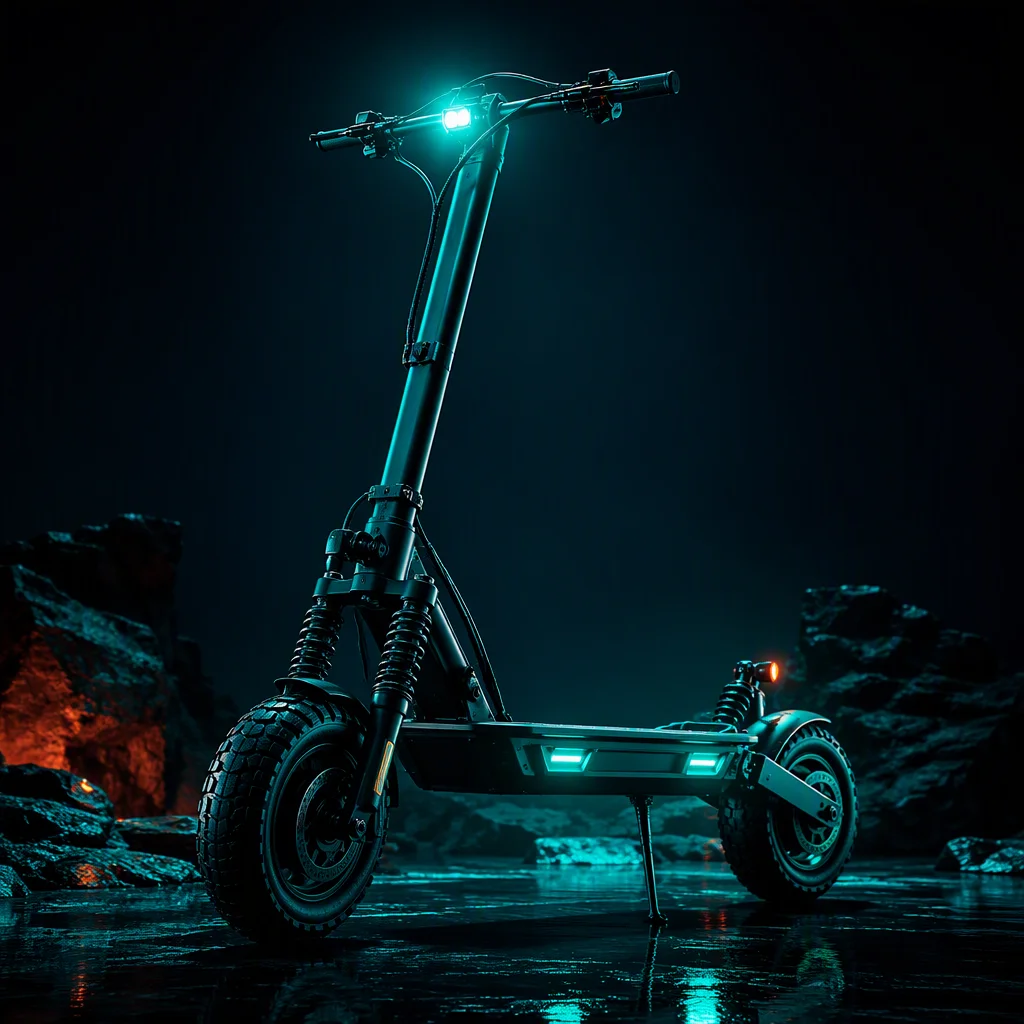

All-Terrain Stance

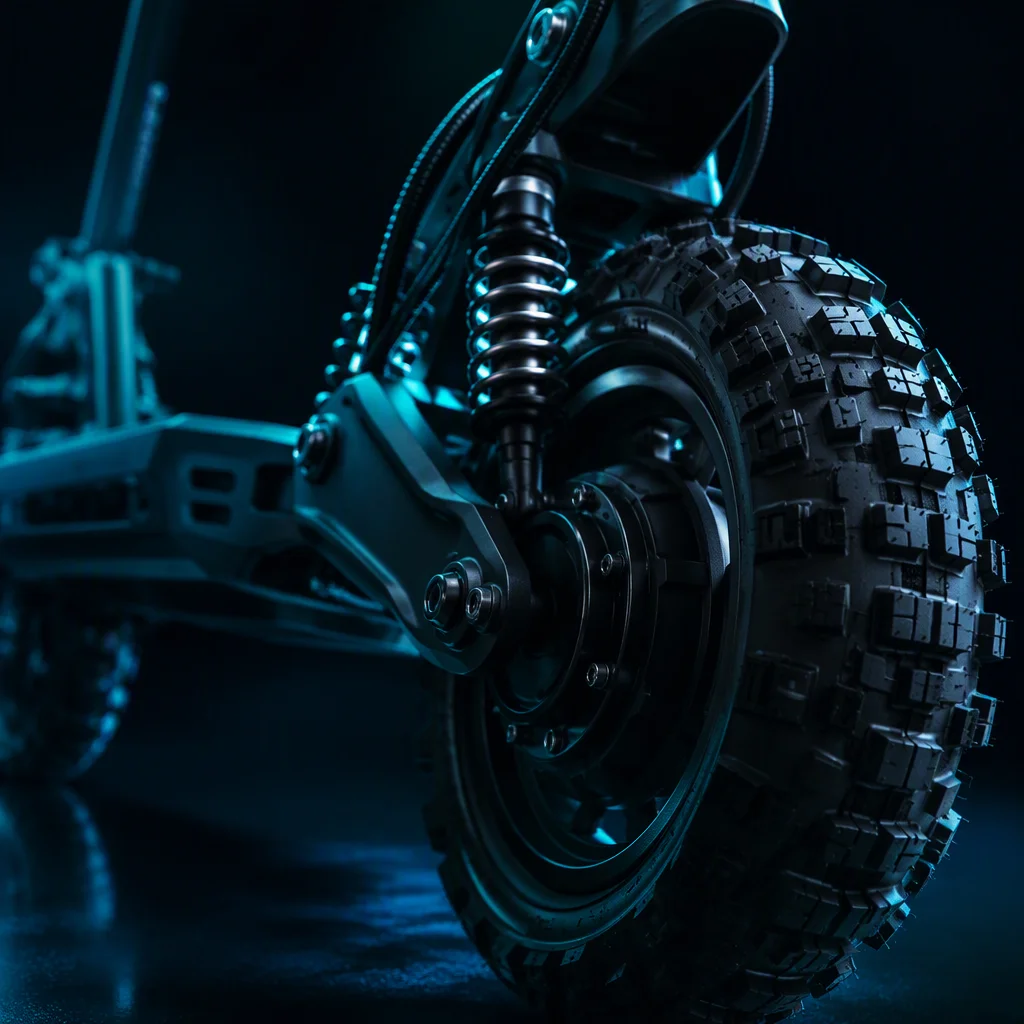

Dual Motor & Suspension
Off-Road Scooter FAQ
The questions we answer most frequently from buyers sourcing high-power dual-suspension scooters for trail and all-terrain markets.
The standard MOQ is 50 units with production lead times of 25 to 35 days, reflecting the more complex assembly and testing requirements of high-power off-road platforms. Custom dual-motor AWD configurations add approximately 5 to 7 days to the production schedule. First-time OEM orders with new branding, color profiles, and custom packaging typically require 35 to 45 days from artwork approval to container loading. Rush production slots are available for an 8% surcharge on orders above 100 units.
Yes, the dual 1000W motor configuration delivers a combined peak output of 3,200W with approximately 80 Nm of torque, enabling the scooter to climb 30-degree inclines compared to approximately 18 degrees on the single-motor variant. The dual-motor setup also provides superior traction on loose gravel, mud, and wet grass through independent wheel-speed control. However, range drops by 15 to 20 percent in AWD mode due to the additional power draw. The price difference between single-motor and dual-motor configurations is approximately $120 to $180 per unit at FOB pricing.
The off-road platform comes standard with CE marking, RoHS materials compliance, and UN 38.3 battery transport certification. IPX5 water resistance is available as an optional upgrade for buyers targeting wet-trail or all-weather markets; this adds enhanced connector sealing and conformal coating on electronic components. Since this scooter is primarily designed for off-road and trail use rather than on-road commuting, EN 17128 certification is not required for most markets. For North American buyers who want electrical system certification, UL 2272 testing is available at a one-time certification cost of $2,500 per model, with full test reports provided.
Off-Road Scooter Performance Tiers
From single-motor trail runner to dual-drive AWD beast. All prices FOB Shenzhen, MOQ 50 units.
| Spec | Single 1000W | Dual 1000W | Dual 1500W Pro |
|---|---|---|---|
| Motors | 1x 1000W rear | 2x 1000W AWD | 2x 1500W AWD |
| Battery | 48V 18Ah | 48V 18Ah | 60V 20Ah |
| Range | 50–65 km | 45–55 km | 50–60 km |
| Top Speed | 45 km/h | 50 km/h | 55 km/h |
| Suspension Travel | 135 mm | 135 mm | 150 mm |
| Weight | 28 kg | 32 kg | 35 kg |
| FOB Price | $420–520 | $540–680 | $720–880 |
| MOQ | 50 units | 50 units | 50 units |
Off-Road Scooter Ordering & Delivery Guide
Larger, heavier scooters require different logistics planning. Here is what to expect from sample approval through container delivery.
Packaging & Container Load
Carton dimensions: 128 x 28 x 55 cm. The larger chassis limits container density: approximately 110 units per 20GP and 260 units per 40HQ. Each carton includes the scooter (handlebar removed), dual chargers (if applicable), toolkit, and manual.
Payment Terms
Standard payment is T/T 30/70: 30% deposit with order confirmation, 70% balance before container release. For orders exceeding $50,000, L/C at sight is available with major Chinese and international banks.
Sample Orders
Sample unit price is 1.2x FOB ($240–350 per unit) plus DHL air freight (higher due to 28–35 kg shipping weight). The sample cost is credited against your first 50-unit order. Custom artwork and branding on samples requires a one-time $300 artwork setup fee.
Warranty
18-month frame warranty, 12 months on motors and controllers, 12 months or 600 cycles on battery, 12 months on hydraulic brake components. 1% free spare parts with every bulk order, including brake pads and inner tubes for immediate service stock.
Bring All-Terrain Scooters to Your Market
From single-motor trail runners to dual-drive AWD beasts, tell us your terrain profile and target price band. We configure the motor mapping, suspension spec and battery chemistry to match — and return a full quotation with lead time within 24 hours.
