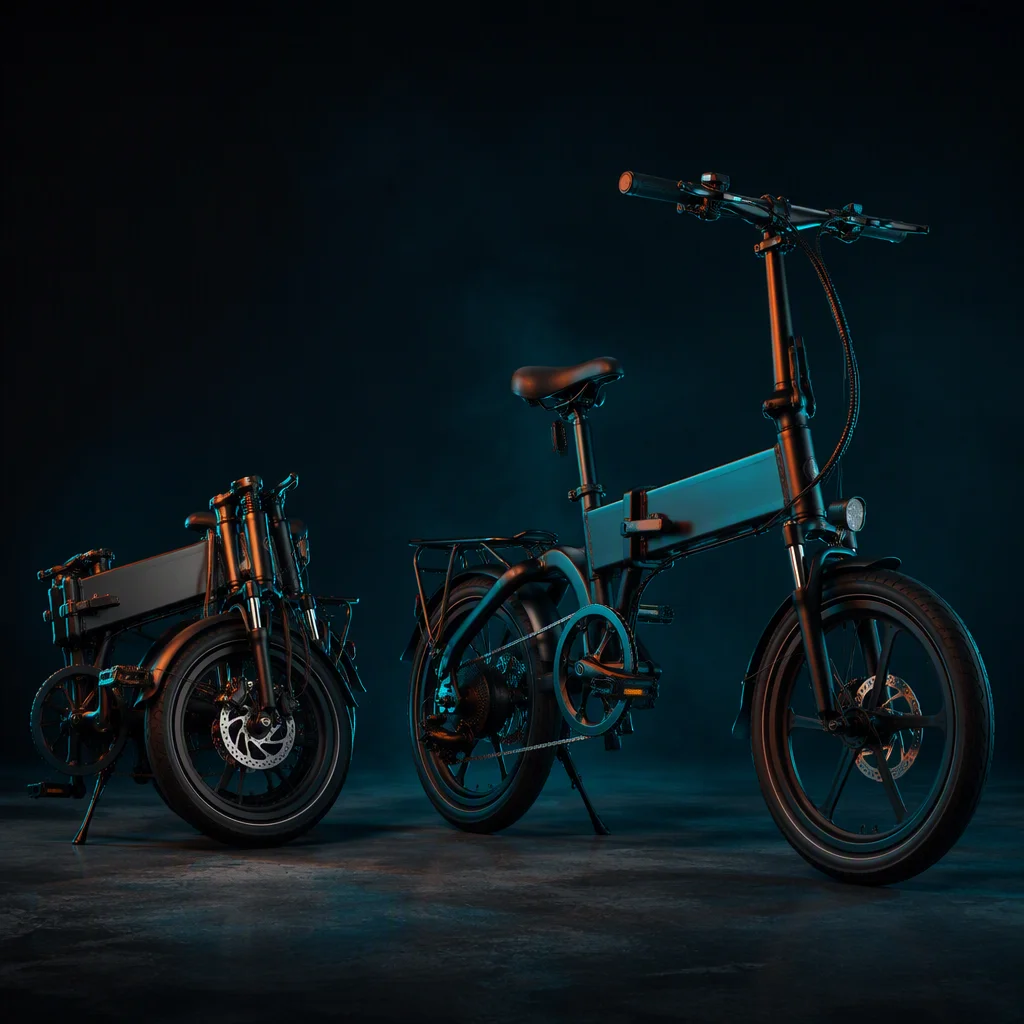

Folding E-Bike
250W–350W hub motor · 36V 8–10Ah · 14"/16" wheels · folds in seconds
Compact Power for Multimodal Commuters
The folding e-bike platform solves the last-mile problem for urban commuters who combine cycling with trains, buses, and car trunks. The magnesium alloy hinge mechanism locks rigid when open and releases with a single lever — folding to roughly 70 cm by 60 cm in under 15 seconds. More than 9,000 units have been delivered to distributors across Japan, South Korea, and Western Europe since launch, where apartment storage space is at a premium and multimodal transport is the norm.
Folding E-Bike Spec Sheet
| Motor | 250W / 350W brushless hub motor, 36V |
|---|---|
| Battery | 36V 8Ah / 36V 10Ah lithium, seat-post integrated |
| Range | 25–45 km (pedal-assist mode) |
| Top Speed | 25 km/h |
| Charging Time | 3–5 hours |
| Brakes | Mechanical disc 140 mm rotors, front & rear |
| Weight | 18–22 kg (with battery) |
| Load Capacity | 100 kg |
| Folded Size | 70×60×40 cm (approximate, model-dependent) |
| Tires | 14"×2.125" / 16"×1.75" urban tires |
| Frame | 6061 aluminum alloy, magnesium alloy hinge mechanism |
| Display | Mini LED, 3-level assist, battery indicator |
| Transmission | Single-speed, belt drive option available |
Tailor the Folding Platform
The folding e-bike is a highly personal product — riders choose it as much for aesthetics and portability as for electric assist. Our modular frame design lets you configure key dimensions and finishes without retooling charges.
- Wheel size — 14-inch compact or 16-inch for improved ride quality and stability
- Frame material and folding mechanism — 6061 alloy with forged magnesium hinge block
- Battery integration style — seat-post internal or external downtube-mounted pack
- Belt drive upgrade — Gates Carbon Drive compatible pulley and tensioner system
- Mudguard color — matching frame, contrast, or transparent polycarbonate
- Carry bag and boot mat — included accessory package with branded nylon storage bag
- Handlebar stem style — telescopic with quick-release or fixed-height riser bar
- Pedal type — folding alloy pedals or standard platform with removable pin
EU and International Compliance
The folding platform is certified to EN 15194 with full mechanical strength testing on the hinge assembly. Battery packs are UN 38.3 compliant for air and sea freight, and every unit ships with a CE declaration of conformity.
Where Folding E-Bikes Deliver Value
From dockless bike-share to executive car-trunk commuting, the folding platform creates new mobility use cases that full-size e-bikes cannot serve.
Urban Commuting

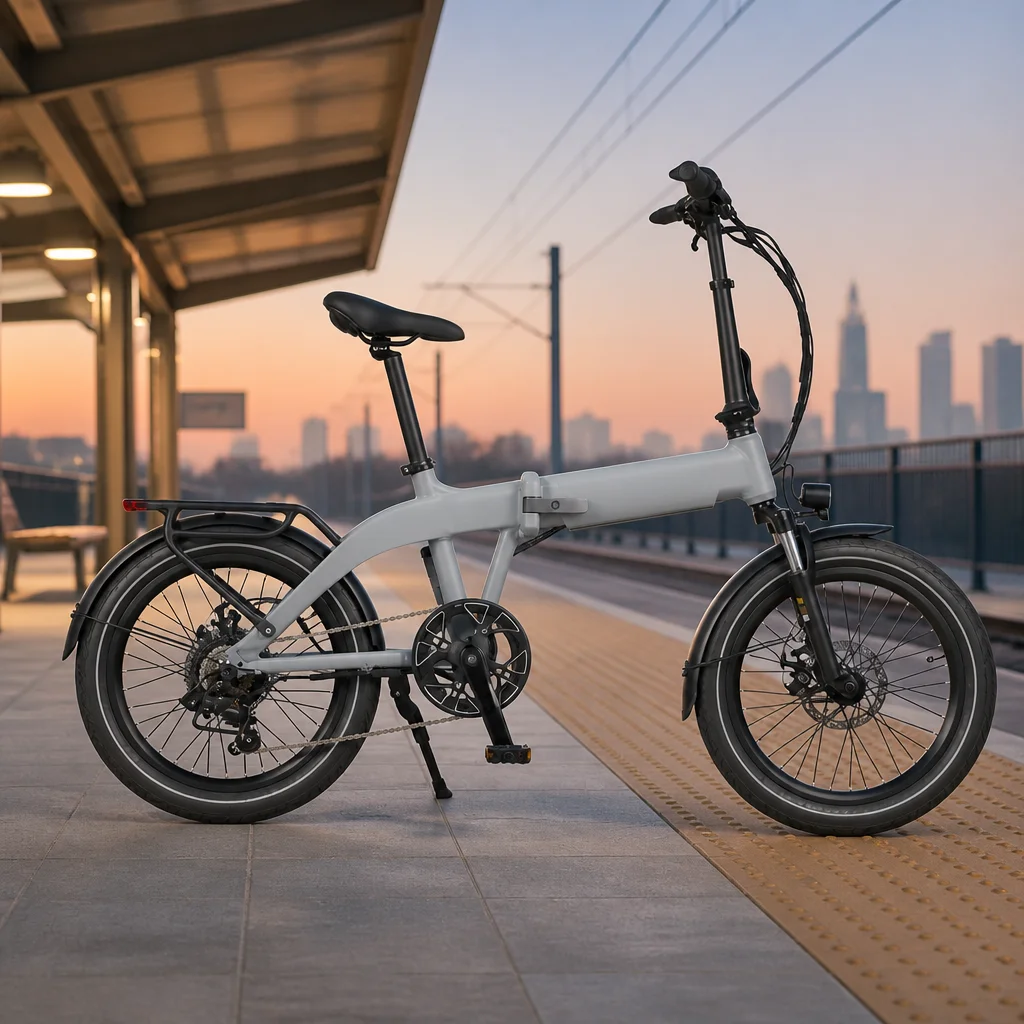

Multimodal commuters who ride from home to station, fold, board the train, then ride to the office. Compact folded footprint fits under desks and in apartment entryways where full-size bikes cannot go.
Explore Urban CommutingShared Mobility Fleets
Dockless folding e-bike share with IoT tracker integration. Smaller footprint means higher parking density at transit hubs. Tamper-resistant hinge bolt and quick-swap battery bay.
Explore Shared MobilityTourism & Rental
Hotel and resort guest amenity — folding e-bikes stored at concierge, issued to guests for city exploration. Branded frame with hotel livery, helmet and lock included in carry bag.
View All IndustriesModel Highlights
Frequently Asked Questions
The MOQ is 50 units per model variant with a 20–30 day lead time from order confirmation. Mixed-color orders within the same model are supported at no surcharge. First-time OEM orders with custom branding may require 25–35 days. We offer container consolidation for orders under 50 units at a 5% premium.

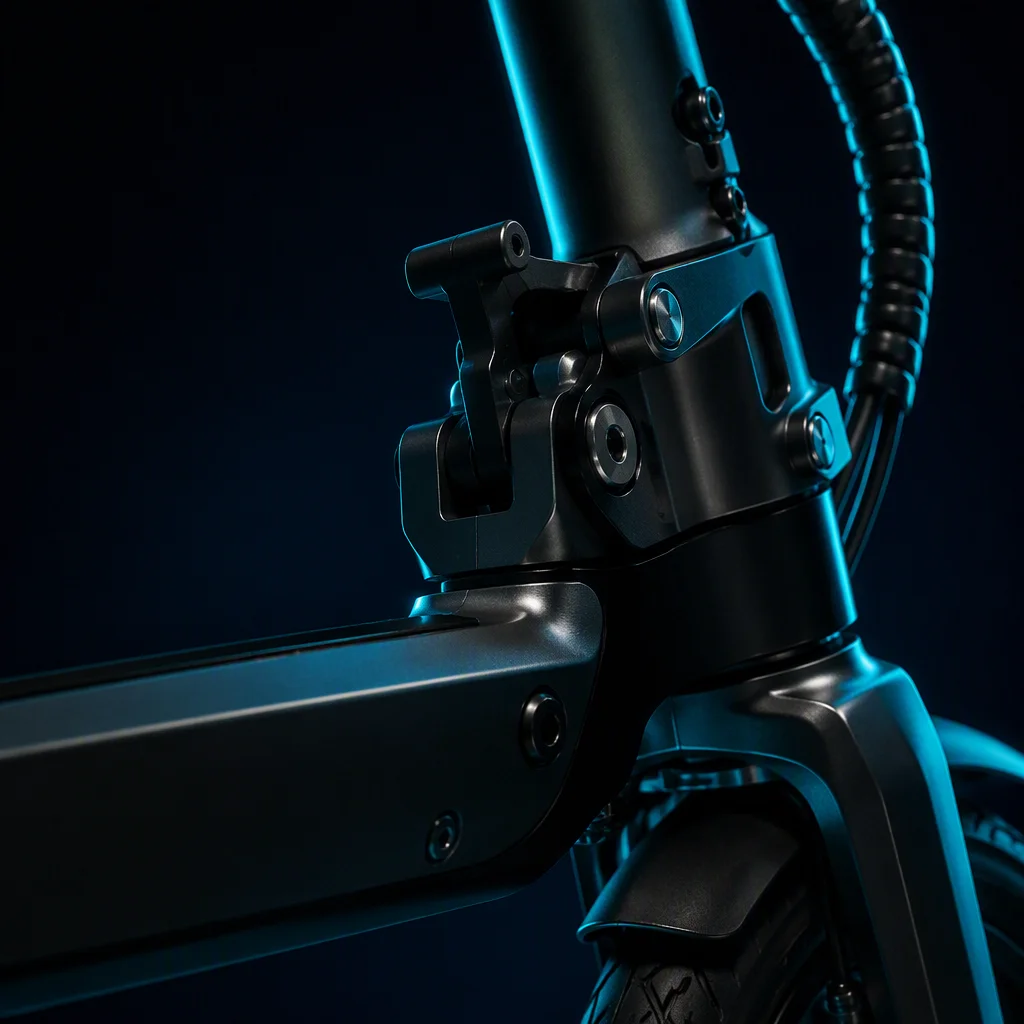

The folding mechanism uses a forged magnesium alloy hinge with a hardened steel locking pin, rated for over 5,000 fold/unfold cycles in our internal durability testing — equivalent to roughly 4 years of twice-daily folding. The hinge is covered under the 18-month frame warranty. We also offer a belt-drive variant that eliminates chain grease, making the folding process clean and maintenance-friendly for commuters who fold multiple times per day.
We offer 36V 8Ah and 36V 10Ah lithium packs with Samsung or LG 18650 cells. The 8Ah pack (288 Wh) falls below the 300 Wh threshold for airline travel under IATA regulations, making it suitable for multimodal commuters who need to carry a spare battery. Both packs are UN 38.3 certified with full MSDS documentation. Upgrading from 8Ah to 10Ah adds approximately $35–50 per unit at the FOB level.
Compare Models in This Line
| Specification | Compact 14" | Urban 16" | Performance 20" |
|---|---|---|---|
| Motor | 250W hub, 36V | 350W hub, 36V | 500W hub, 48V |
| Battery | 36V 8Ah | 36V 10Ah | 48V 10Ah |
| Range | 25–35 km | 30–45 km | 40–55 km |
| Top Speed | 25 km/h | 25 km/h | 32 km/h |
| Charging Time | 3–4 hours | 4–5 hours | 4–5 hours |
| Weight | 18 kg | 20 kg | 22 kg |
| Folded Size | 70x60x40 cm | 75x62x42 cm | 80x65x45 cm |
| Price Range (FOB) | $320–380 | $400–480 | $520–620 |
| MOQ | 50 units | 50 units | 50 units |
Ordering This Model
- Packaging & Container Load — Each folding e-bike is packed in a compact 7-layer export carton (112 x 44 x 68 cm) with custom-cut foam inserts. The folded form factor significantly reduces shipping volume. A 20GP container accommodates approximately 126 assembled units or 170 SKD units. A 40HQ fits up to 300 assembled or 400 SKD units — roughly 50% more than a standard non-folding e-bike in the same container.
- Payment Terms — Standard terms are T/T 30% deposit with order, 70% against scanned B/L copy before shipment. For orders exceeding $40,000, we accept irrevocable L/C at sight. Sample orders are payable 100% in advance via T/T or Alibaba Trade Assurance.
- Sample Policy — A single folding e-bike sample is available at 1.2x the FOB unit price plus air freight (approximately $160–240 to Europe or North America via DHL/FedEx, 5–7 business days). The sample cost is credited against the first bulk order of 50 units or more. Custom-branded samples require a $250 artwork setup fee, refundable on the first production order.
- Warranty & After-Sales — Standard warranty: 18 months on the frame and folding hinge mechanism, 12 months on the motor and controller, and 12 months or 800 charge cycles on the battery. Warranty claims are processed within 5 business days. Spare inner tubes, brake pads, and a charger are included free at 1% of order value with every container shipment.
Ready to Source Folding E-Bikes?
Tell us your wheel size preference (14", 16", or 20"), desired battery range, and target monthly volume. Our export team returns a full quotation with unit pricing, lead time, and shipping options within 24 hours.
